Inverters – What’s New intended for AC-DC?


The role of the inverter is often overlooked within a photovoltaic system. Kept within in the attic or in a wardrobe, it is not the most visible portion of a system but it performs a vital role and makes up a big component of the equipment costs. Typically the inverter is the hub that converts the direct current manufactured by the solar panels into induced current suitable for the UK grid.

In the typical residential photovoltaic technique, solar panels are connected in the ‘string, ‘ which means they can be connected together in line so that the voltage of each element adds up. The positive and damaging ends of the string are generally connected to the inverter which then can do two main things:

To start with, the inverter applies the best voltage across all the solar panel systems in the string. In order to get the maximum energy from solar power, you need to apply certain braille across it. The easy way to be aware of this is by remembering in which power equals current instances voltage. Current will nonetheless flow out of the solar panel if you find no voltage across the idea, but it won’t be able to offer energy.

If too much attention is applied to the -panel then you lose current appearing out of the solar panel, so the best voltage is somewhere between. It is the inverter’s job to maintain the solar panels at this the best voltage. This is quite difficult since the optimum voltage modifications with the temperature of the solar power panels. To cope with this there is a unique algorithm built into the inverter called ‘maximum power stage tracking’, which makes continual alterations to the voltage to ensure that almost all energy is got outside the system.

The second important task of the inverter is to turn the direct current produced by typically the solar panels into alternating current suited to the mains electricity power. In the UK, the main occurrence is 50Hz so the inverter must make sure that the electric power it supplies is matched to this particular frequency so that it can be used by simply other appliances in your house or maybe be sold to your energy company.

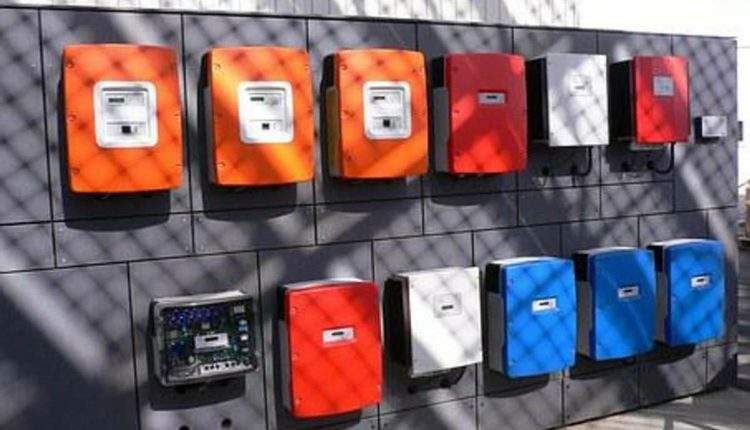

Inverters are very common, such as your laptop charger employs an inverter to convert droits 50Hz electricity into household power for your computer (this partially explains why laptop garners are so expensive though We still think it’s a rip-off), and there are some very good photo voltaic inverters already out there. The biggest manufacturer of solar inverters is called SMA, which likes a +30% market share globally (their line of residential photo voltaic inverters is called the ‘SunnyBoy’). Other big manufacturers tend to be Kaco, Xantrex, Danfoss as well as Mastervolt to name a few. These inverters work well, so what are the advancements on the horizon that make inverters fascinating?

One issue is effectiveness. Most commercial inverters remain 97% efficient, which is decent, but it still means that that is lost 3% of all the energy anyone produces by converting it from DC to AC. Improving efficiency to 99% would likely increase the return on investment of your solar system and give you a real competitive edge. Several manufacturers claim to always be close to offering new, super-high efficiency products.

The next matter is reliability. Most inverters are guaranteed for several years, which although not awful, is only half typically the guaranteed lifetime of solar panels. Therefore consumers must allow for updating the inverter at least once whenever financing a solar task. If inverters could be assured for 20 years, it would imply consumers could feel comfortable understanding that the system will operate below guarantee for its entire life until the whole thing requires replacing.

Inverter manufacturers happen to be striving to improve the reliability of the systems and products assured for 20 years should be available on the market soon. As a side stage; proving 20-year reliability is extremely hard to do without actually waiting around 20 years, and there is an entire discipline of study devoted to ‘accelerated stress testing’ of this merchandise.

Another set of new features is usually how information is viewable. Many inverters come with various WebBox that allow you to view the functionality of your solar system online. A number of inverters now even feature iPhone apps so you can see your solar energy production on the go, importantly show your friends from the pub. These types of innovations can keep coming so keep an eye out if this sounds like something that interests you.

Perhaps almost all radical development for inverters is the ‘micro-inverter’. Basically, therefore, having not one big inverter but lots of smaller versions attached to each solar panel. They have several advantages. Firstly, it may improve the performance of the program significantly. Going back to the optimum power point tracking function mentioned above, a normal inverter offers trouble if not all the solar power panels are performing the same.

Solar power panels could be at different temps to each other or just have a different overall performance from factory errors. By utilizing micro-inverters you can ensure that every solar panel is being operated at its own optimum voltage. An additional issue is to do with shading. If one cell in a string is tree-lined or performing badly, the item acts like a big resistor and dramatically reduces often the performance of the whole process.

Using micro-inverters isolates often the performance of each solar panel so power loss from and also is minimized. Enphase Strength, a leading manufacturer of micro-inverters in California claims the features can lead to an improvement and provides 25% better energy production.

Other benefits of micro-inverters have the elimination of dangerous substantial voltage DC cabling on the top, which can reduce fire and also electrocution risks. (Another aspect point; some micro-inverter tools are not actually micro-inverters, nevertheless, they perform maximum power level tracking at each solar panel and after that the AC: DC conversions at a central point. )

Currently, there is not a single micro-inverter product available in the UK. It is because it is still a new technological innovation and the UK is such a great insignificant market that it is certainly not of interest to manufacturers hastening to bring their products to commercialization. That being said, the success of companies like Enphase inside California, and the spate of companies following in their actions, means that it won’t be some time before they become a real option, in the UK.
